Casement Window Series 238SN

Casement Window Series 238SN

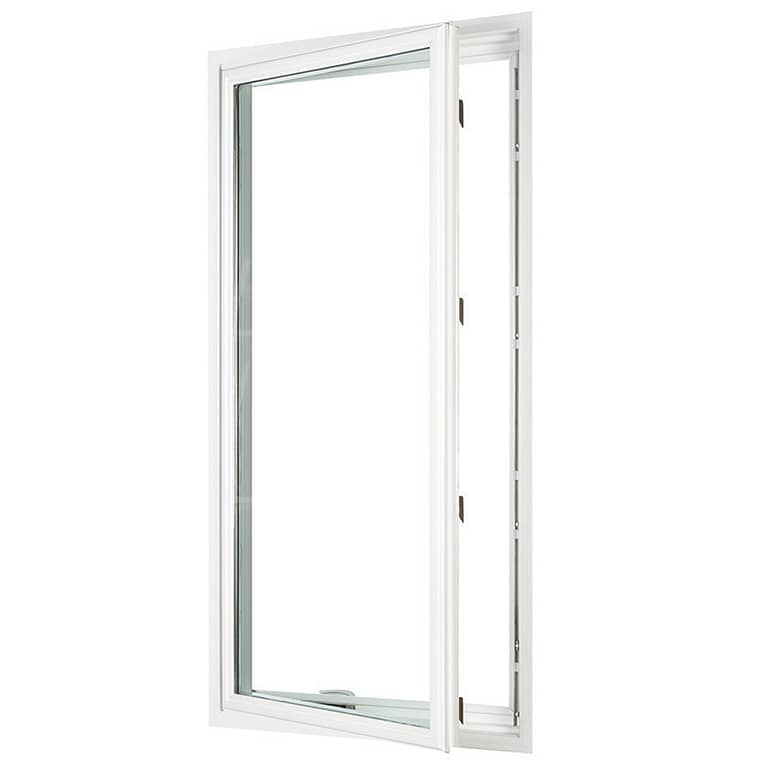

CGI’s ElementShield Aluminium impact resistant casement windows have very clean lines and incredible eye appeal with the advantage of quality aluminum construction.
CGI’s impact resistant 238 series of casements, and project-out windows have matching sight lines which allows them to be used interchangeably throughout your home.

Features

  • Extruded screen frame with Super-View mesh
  • Extruded snap-on square glazing beads
  • Stainless steel assembly screws and corner keys
  • Double weatherstripping
  • 1/2” Exterior flange frame
  • 2” Deep frame

Finishes

White
Clear Anodized
Bronze

Glass

Solexia
Rain
Obscure
Grey
Dark Grey
Clear
Bronze

Hardware

  • Single Stainless Steel arm roto operator and crank handle
  • Stainless steel operator track
  • Pair of stainless steel four bar concealed hinges
  • Pair of locks (one lock on window under 30” high)
  • Pair of stainless steel keepers for above locks
  • Snubber blocks
  • Small operator on units less than 24″, Large operator on units 24″ or more
  • Nesting Handle (Bronze Shown):
Sizes
Commodity Sizes
Width Height Width Height Width Height
19 1/8 17 26 1/2 17 37 17
19 1/8 26 26 1/2 26 37 26
19 1/8 38 3/8 26 1/2 38 3/8 37 38 3/8 e
19 1/8 50 5/8 26 1/2 50 5/8 e 37 50 5/8 e
19 1/8 63 26 1/2 63 e 37 63 e
19 1/8 72 26 1/2 72 e 37
e= Meets clear opening egress requirements at 5.7 sq. ft.

Custom Sizes
Width     Height
Minimum Available 18″ Minimum Available 17″
Maximum Available 42″ Maximum Available 84″
Maximum over-all window area is 16.34 sq. ft.

Modular Sizes
Width Height Width Height Width Height Width Height Width Height Width Height
20 24 24 24 28 24 30 24 32 24 36 24
20 30 24 30 28 30 30 30 32 30 36 30
20 36 24 36 28 36 30 36 32 36 36 36 e
20 42 24 42 28 42 30 42 e 32 42 e 36 42 e
20 48 24 48 28 48 e 30 48 e 32 48 e 36 48 e
20 54 24 54 28 54 e 30 54 e 32 54 e 36 54 e
20 60 24 60 28 60 e 30 60 e 32 60 e 36 60 e
20 66 24 66 28 66 e 30 66 e 32 66 e
20 72 24 72 28 72 e 30 72 e 32 72 e
20 78 24 78 28 78 e
20 84 24 84
e= Meets clear opening egress requirements at 5.7 sq ft
NOA/Performance
Performance Results
Maximum Water Resistance 16.5 PSF
Large Missile 20 x 36 window (Ann/ Ann) + 110 PSF/ – 194.3 PSF
37 x 63 window (Ann/ Ann) +60 PSF/ -60 PSF
Forced Entry Test (AAMA 1302.5) Passed
Energy Values
Energy Values (NFRC Approved)
Laminated U Factor SHGC VT
5/16″ Gray 1.04 0.44 0.39
5/16″ Clear 1.04 0.53 0.59
Insulated Laminated
3/4″ Clear LoE 366 0.63 0.21 0.42
3/4″ Clear LoE 270 0.63 0.27 0.46
Optional Items
  • Connecting lock bar for egress windows
  • Custodial type locks (for institutional use)
  • Limit opening devices
  • Collapsible crank handle
  • Hinges with washability feature (for high-rise use)
  • Equal leg frame
