Designer Fixed Window Series 130

Designer Fixed Window Series 130

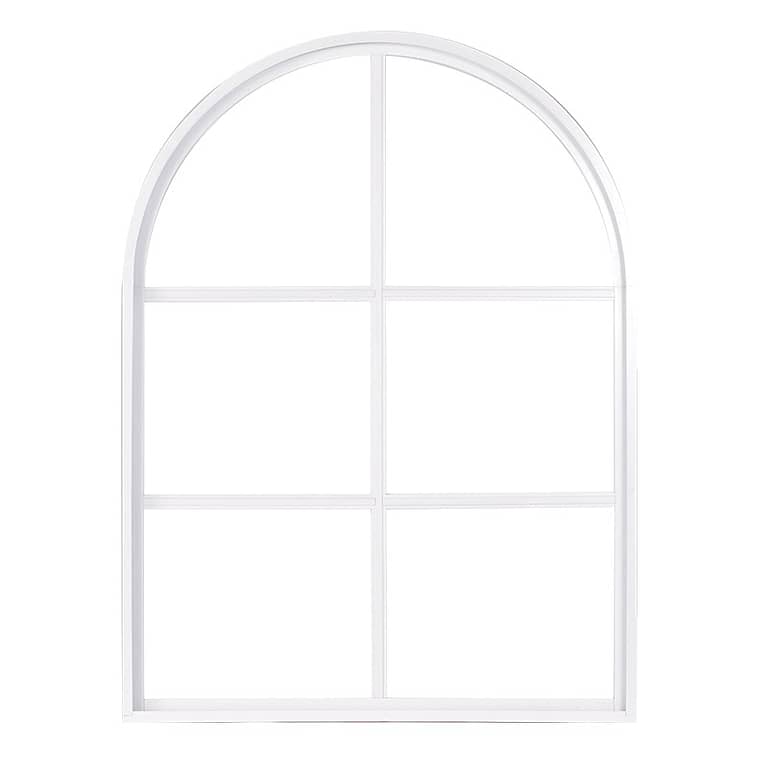

The ElementShield Aluminium Designer Fixed impact window are available in shapes up to 33 square feet and offers a narrow frame design allowing you to maximize your available glass area. The fastener covers finish off this product choice nicely making this a very clean looking window for any room in your home

Features

  • Extruded snap-on glazing beads
  • 2 1/2” deep frame
  • Strong structural glazing
  • Fastener covers

Finishes

White
Clear Anodized
Bronze

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

Sizes

Please contact your CGI provider for details on Designer Fixed Series 238 Window Sizes.

NOA/Performance
Performance Results
Maximum Water Resistance 12 PSF
Large Missile 49 x 97 window (Ann/ HS) + 60 PSF/ – 60 PSF
49 x 97 window (HS/HS) +80 PSF/ -80 PSF
Energy Values
Energy Values (NFRC Approved)
Laminated U Factor SHGC VT
7/16″ Clear LoE 366 1 0.33 0.51
7/16″ Gray 0.96 0.49 0.42
7/16″ Clear 0.96 0.63 0.74
Insulated Laminated
1″ Clear LoE 366 0.42 0.25 0.53
1″ Clear LoE 270 0.42 0.32 0.57
Optional Items

Flangle, fin & equal leg frame options
