Designer/Architectural Fixed Window Series 920V (Non-Impact: 820V)

Designer/Architectural Fixed Window Series 920V (Non-Impact: 820V)

The ElementShield Vinyl Series 920V Designer/Architectural features a 3 1/4″ frame depth and fusion welded frames.

Features

3 1/4” frame depth
Fusion Welded Frame and Sash CornersHalf Circle
Shapes:

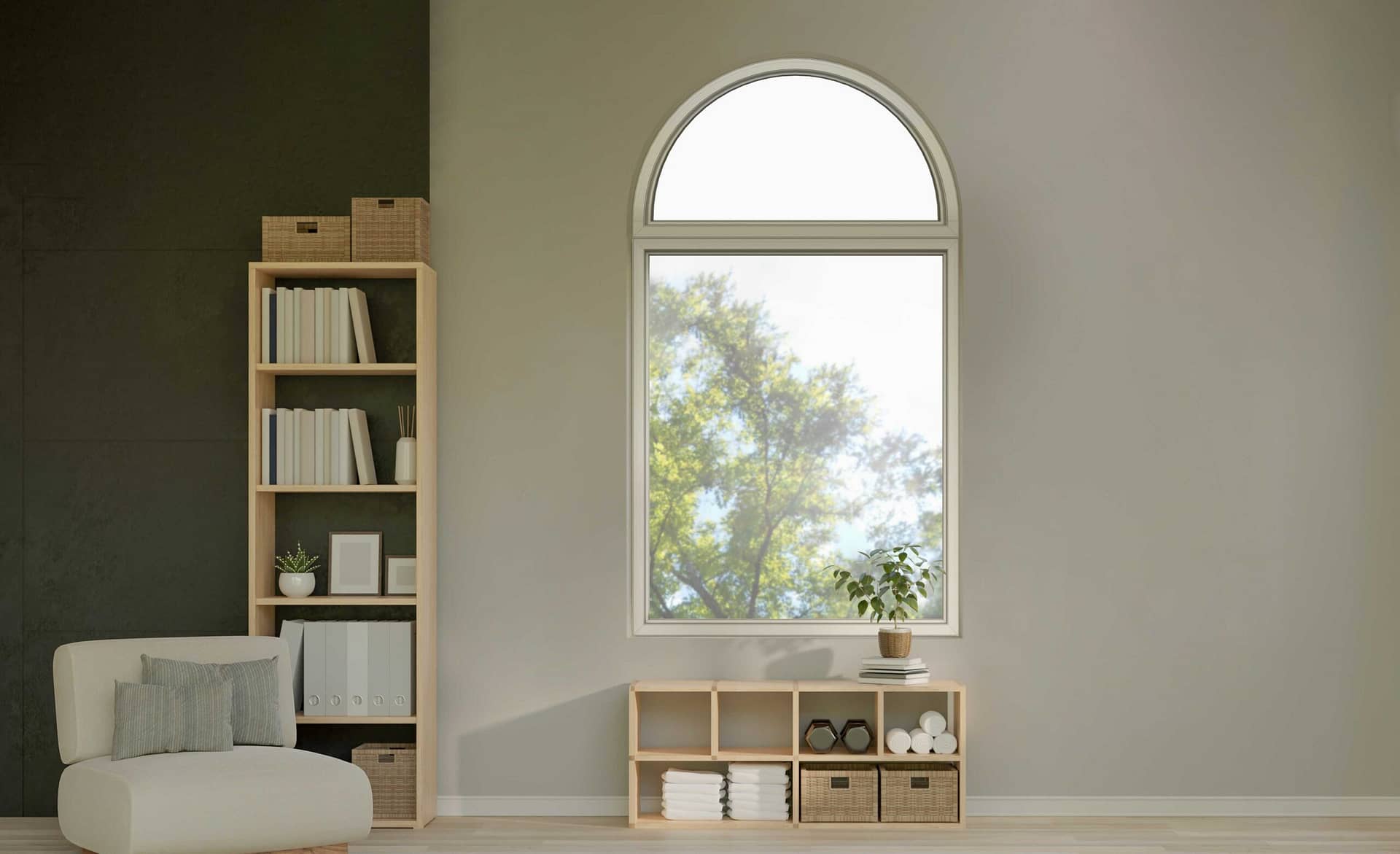

- Arch
- Trapezoid
- Chord
- Half Chord

Finishes

Glass

Rain

Obscure

LowE Coatings

Hardware

Sizes

Architectural	Min	Max – NON IMPACT	Max – IMPACT
Half Circle	24 x 12	max 40 sq ft	max 35 sq ft

Arch	24 x 16 x 4 (min leg)	max 40 sq ft	max 35 sq ft

Trapezoid	11.25 x 15.25 (32* angle or greater)	max 40 sq ft	max 35 sq ft

Chord	24 x 11.75 (12″ min radius. 32* angle or greater)	max 40 sq ft	max 35 sq ft

NOA/Performance

Energy Values

Optional Items

Colonial grid types:
