Fixed Window Series 130

Fixed Window Series 130

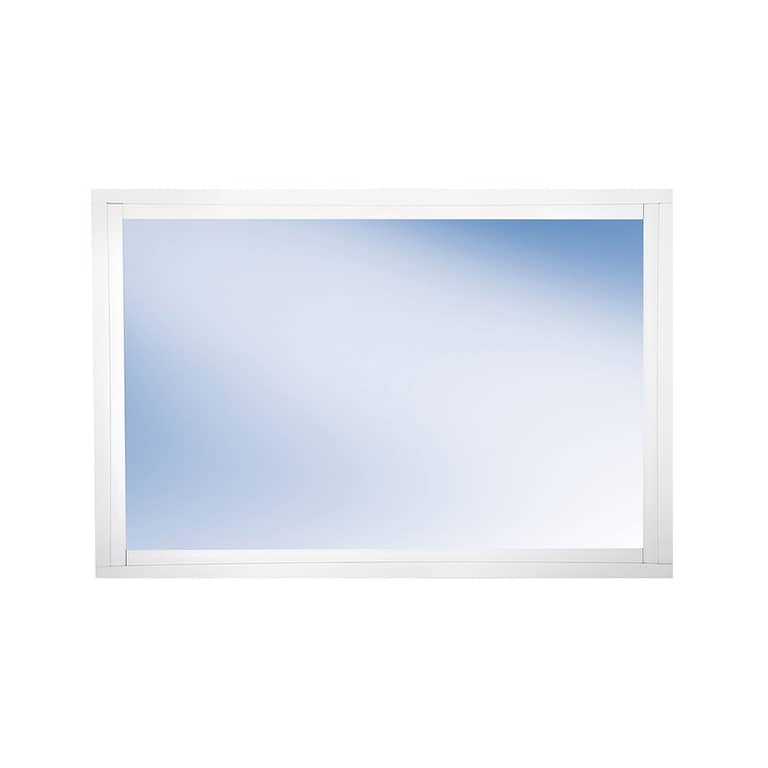

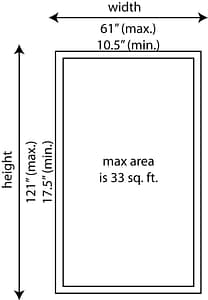

The ElementShield Aluminium Rectangular Fixed impact window is available in sizes up to 33 square feet and offers a narrow frame design allowing you to maximize your available glass area. The fastener covers finish off this product choice nicely making this a very clean looking window for any room in your home.

Features

  • 2 #10 1 1/4” stainless steel fasteners per corner
  • Extruded snap-on square glazing beads
  • 2 1/2” deep frame
  • Strong structural glazing
  • Fastener covers

Finishes

White
Clear Anodized
Bronze

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

All fixed windows have a 2 1/2″ depth, ideal for replacement applications

Equal leg and fin frame max area is 32 sq. ft

Small missile performance results available upon request.

Performance Results
Maximum Water Resistance 12 PSF
Large Missile 49 x 97 window (Ann/ HS) + 60 PSF/ – 60 PSF
49 x 97 window (HS/HS) +80 PSF/ -80 PSF

Energy Values (NFRC Approved)
Laminated U Factor SHGC VT
7/16″ Clear LoE 366 1 0.33 0.51
7/16″ Gray 0.96 0.49 0.42
7/16″ Clear 0.96 0.63 0.74
Insulated Laminated
1″ Clear LoE 366 0.42 0.25 0.53
1″ Clear LoE 270 0.42 0.32 0.57

Flange, fin & equal leg frame options
