Fixed Window Series 7500

Fixed Window Series 7500

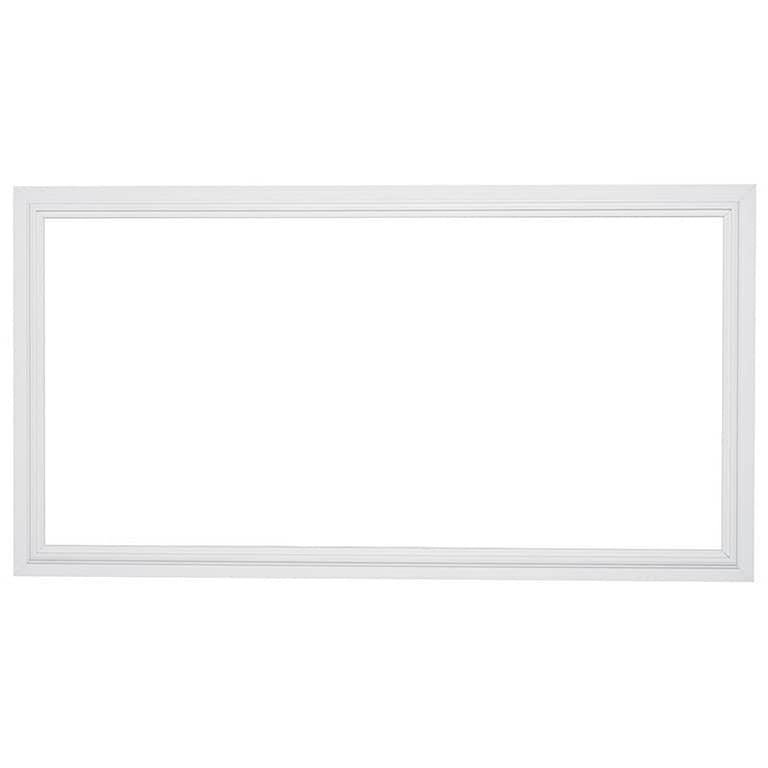

The ElementShield Vinyl Series 7500 Fixed Window designed by CGI features concealed installation fasteners and is available in sizes up to 32 square feet. The concealed installation screws finish off this product nicely making this a very clean looking window for any room in your home.

Features

  • Concealed installation fasteners
  • Sizes up to 32 square feet

Finishes

White

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

  • Snap-on glazing beads
  • 1/2″ flange frame
  • 3 1/4″ frame depth
  • Strong structural glazing
  • Concealed installation fasteners

Maximum area is 32 sq ft.

Height:
Minimum: 26″
Maximum: 48″

Width:
Minimum: 19 1/8″
Maximum: 120″

Performance Results
Maximum Water Resistance 12 PSF
Small and Large Missile 48″ x 63″ +50 PSF/ -50 PSF
Small and Large Missile 48″ x 63″ SGP Only

48″ x 96″ SGP Only

+80 PSF/ -80 PSF

+75 PSF/ -75 PSF

Forced Entry Test (ASTM F588) Passed
Based on flange frame size.

Energy Values
U Factor SHGC VT
7/16″ Laminated Clear LoE 366 0.83 0.30 0.50
7/16″ Laminated Gray 0.82 0.47 0.41
7/16″ Laminated Clear 0.82 0.61 0.73
1″ Insulated Laminated Clear LoE 366 0.27 0.23 0.52
1″ Insulated Laminated Clear LoE 270 0.27 0.30 0.56

  • Flange, fin & equal leg frame options
  • Double applied contoured exterior muntins and internal grills between glass
