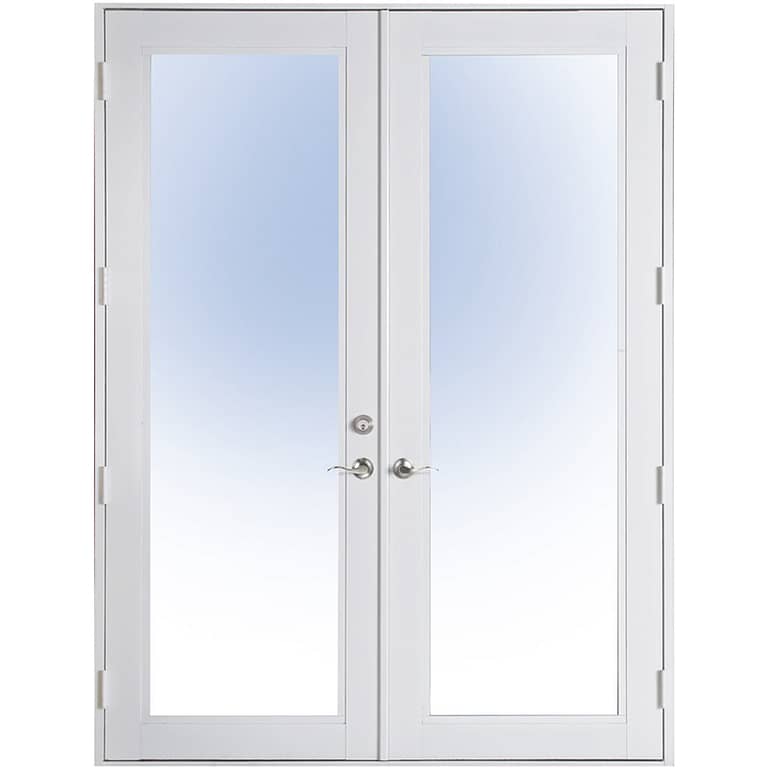

French (Swing) Series 160 Doors

The ElementShield Aluminum French door is a valued priced offering from CGI with the same standards of high quality and precision many have come to know and expect from CGI. Our doors include our patented concealed three point lock system, which unlike others in the marketplace is designed to activate all three locking points with one single turn, inside and out.

Features

Extruded snap-on glazing beads
4” deep frame
Fastener covers
Triple weatherstripping
Outswing configuration
Square or slanted sill cover

Finishes

White

Clear Anodized

Bronze

Glass

Solexia

Rain

Obscure

Mist

Grey

Dark Grey

Clear

Bronze

Hardware

Sizes

Single and Pair of Door Sizes
6’8″ Units		8′ Units
Single Door
2668	31 1/4 x 80	2680	31 1/4 x 96
2868	33 1/4 x 80	2880	33 1/4 x 96
3068	37 1/4 x 80	3080	37 1/4 x 96
Double Door
4068	48 x 80	4080	48 x 96
5068	60 x 80	5080	60 x 96
5468	64 x 80	5480	64 x 96
6068	72 x 80	6080	72 x 96

NOA/Performance

Performance Results
Maximum Water Resistance		12 PSF
Large Missile	3′ x 8′ Panel (Ann/ Ann)	+80 PSF/ -80 PSF
Forced Entry Test (AAMA 1302.5)		Passed

Energy Values

ENERGY VALUES (NFRC APPROVED)
	Single Door/ Pair of Doors			Self-Mating/ Free-Standing Sidelite
Laminated	U Factor	SHGC	VT	U Factor	SHGC	VT
7/16″ Clear LoE 366	1.03	0.24	0.32	1.04	0.28	0.41
7/16″ Gray	1.03	0.43	0.47	1.03	0.52	0.59
7/16″ Clear	1.03	0.34	0.26	1.03	0.41	0.33
Insulated Laminated
1″ Clear LoE 366	0.69	0.19	0.33	0.59	0.22	0.42
1″ Clear LoE 270	0.69	0.23	0.36	0.59	0.27	0.45

Optional Items

Brushed Satin, Tuscan Bronze or Polished Brass levers
Free-Standing and Self-Mating Sidelites
