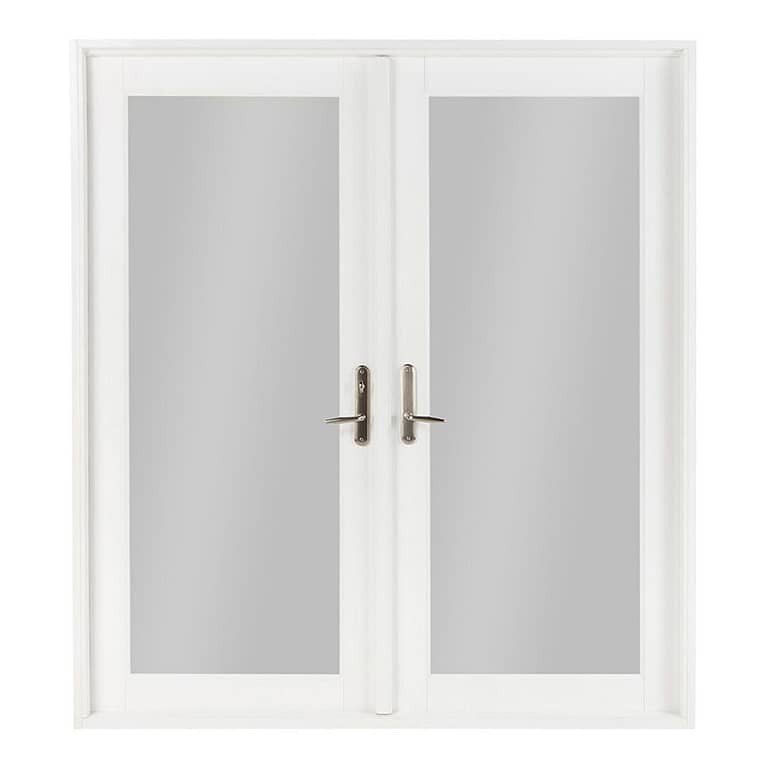

French (Swing) Series 7700 Door

French (Swing) Series 7700 Door

Multipoint locking system with stainless steel hinges. Available with sidelites attached with clipless mullions and transoms in four different frame styles. 4 9/16” frame depth allows for easy retrofit install.

Features

  • Outswing
  • Single or Double Door
  • Stainless steel hinges
  • Equal leg/box frame
  • Installation screw covers
  • Anchor plates
  • Drip Cap
  • 1 3/8” clear anodized threshold with cover

Finishes

White

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

Sizes

Commodity Sizes
Width Height Width Height Width Height
19 1/8 17 26 1/2 17 37 17
19 1/8 26 26 1/2 26 37 26
19 1/8 38 3/8 26 1/2 38 3/8 37 38 3/8 e
19 1/8 50 5/8 26 1/2 50 5/8 e 37 50 5/8 e
19 1/8 63 26 1/2 63 e 37 63 e
19 1/8 72 26 1/2 72 e 37
e= Meets clear opening egress requirements at 5.7 sq. ft.

Custom Sizes
Width     Height
Minimum Available 18″ Minimum Available 17″
Maximum Available 42″ Maximum Available 84″
Maximum over-all window area is 16.34 sq. ft.

Modular Sizes
Width Height Width Height Width Height Width Height Width Height Width Height
20 24 24 24 28 24 30 24 32 24 36 24
20 30 24 30 28 30 30 30 32 30 36 30
20 36 24 36 28 36 30 36 32 36 36 36 e
20 42 24 42 28 42 30 42 e 32 42 e 36 42 e
20 48 24 48 28 48 e 30 48 e 32 48 e 36 48 e
20 54 24 54 28 54 e 30 54 e 32 54 e 36 54 e
20 60 24 60 28 60 e 30 60 e 32 60 e 36 60 e
20 66 24 66 28 66 e 30 66 e 32 66 e
20 72 24 72 28 72 e 30 72 e 32 72 e
20 78 24 78 28 78 e
20 84 24 84
e= Meets clear opening egress requirements at 5.7 sq ft

NOA/Performance

Performance Results
Maximum Water Resistance 16.5 PSF
Large Missile 20 x 36 window (Ann/ Ann) + 110 PSF/ – 194.3 PSF
37 x 63 window (Ann/ Ann) +60 PSF/ -60 PSF
Forced Entry Test (AAMA 1302.5) Passed

Energy Values

Energy Values (NFRC Approved)
Laminated U Factor SHGC VT
5/16″ Gray 1.04 0.44 0.39
5/16″ Clear 1.04 0.53 0.59
Insulated Laminated
3/4″ Clear LoE 366 0.63 0.21 0.42
3/4″ Clear LoE 270 0.63 0.27 0.46

Optional Items

  • Connecting lock bar for egress windows
  • Custodial type locks (for institutional use)
  • Limit opening devices
  • Collapsible crank handle
  • Hinges with washability feature (for high-rise use)
  • Equal leg frame
