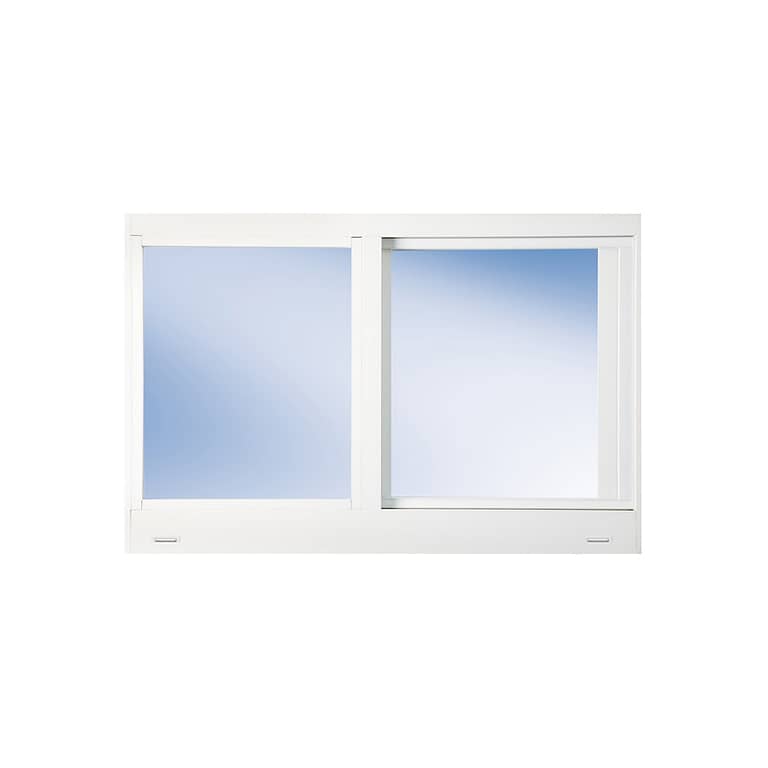

Horizontal Rolling Window Series 120

The ElementShield Aluminium Horizontal Rolling impact window is a value-priced offering that has been designed with many features including a nylon roller with stainless steel ball bearings that glides on a nylon track, multiple points of weatherstripping and stainless steel fasteners. It is available in two and three panel configurations.

Features

Two & three panel configurations OX, XO, XOX
Equal lites or 1/4-1/2-1/4 configuration
Flush design
Double weatherstripping and weeped sill
2 1/2” deep frame
Extruded snap-on square glazing beads
Strong structural glazing
Concealed jamb anchor cover
3 #10 1 1/4” stainless steel fasteners per corner
Extruded screen frame with Super View™ fiberglass mesh

Finishes

White

Clear Anodized

Bronze

Glass

Solexia

Rain

Obscure

Mist

Grey

Dark Grey

Clear

Bronze

Hardware

Egress lock

Sizes

Commodity Sizes XO or OX
Width	Height	Width	Height	Width	Height	Width	Height
26 1/2	26	37	26	53 1/8	26	74	26
26 1/2	38 3/8	37	38 3/8	53 1/8	38 3/8	74	38 3/8 e
26 1/2	50 5/8	37	50 5/8	53 1/8	50 5/8 e	74	50 5/8 e
26 1/2	63	37	63	53 1/8	63 e	74	63 e

e= Meets clear opening egress requirements at 5.7 sq. ft.
All horizontal rolling windows have a 2 1/2″ depth, ideal for replacement applications

Modular Sizes
Width	Height	Width	Height	Width	Height	Width	Height	Width	Height	Width	Height	Width	Height
24	24	36	24	48	24	54	24	60	24	66	24	72	24
24	26	36	26	48	26	54	26	60	26	66	26	72	26
24	36	36	36	48	36	54	36	60	36	66	36	72	36
24	38 3/8	36	38 3/8	48	38 3/8	54	38 3/8	60	38 3/8	66	38 3/8	72	38 3/8
24	48	36	48	48	48	54	48	60	48	66	48	72	48
24	50 5/8	36	50 5/8	48	50 5/8	54	50 5/8 e	60	50 5/8 e	66	50 5/8 e	72	50 5/8 e
24	54	36	54	48	54	54	54 e	60	54 e	66	54 e	72	54 e
24	60	36	60	48	60	54	60 e	60	60 e	66	60 e	72	60 e
24	63	36	63	48	63	54	63 e	60	63 e	66	63 e	72	63 e

All horizontal rolling windows have a 2 1/2″ depth, ideal for replacement applications

NOA/Performance

Small missile performance results available upon request.

Performance Results
Maximum Water Resistance		12 PSF
Large Missile	2 panel 74 x 63 window (Ann/Ann)	+65 PSF/ -65 PSF
	3 panel 111 x 63 window (Ann/Ann)	+65 PSF/ -65 PSF
	2 panel 74 x 63 window (HS/HS)*	+ 80 PSF/ – 90 PSF
	3 panel 111 x 63 window (HS/HS)*	+80 PSF/ -90 PSF
	*Fin frame windows limited to +80/ -80 PSF
Forced Entry Test (AAMA 1302.5)		Passed

Energy Values

ENERGY VALUES (NFRC APPROVED)
Laminated	U Factor	SHGC	VT
5/16″ Clear LoE 366	1.06	0.29	0.45
5/16″ Gray	1.03	0.48	0.43
5/16″ Clear	1.03	0.57	0.64
Insulated Laminated
3/4″ Clear LoE 366	0.61	0.23	0.46
3/4″ Clear LoE 270	0.61	0.29	0.5
