Horizontal Rolling Window Series 7200

Horizontal Rolling Window Series 7200

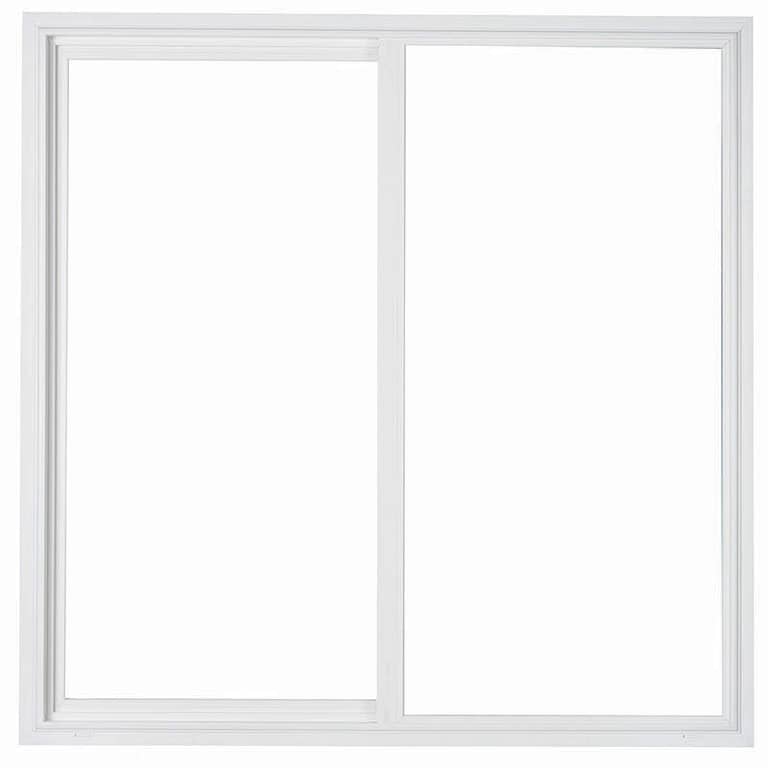

The ElementShield Vinyl Series 7200 Horizontal Rolling Window designed by CGI features a super smooth rolling action available in sizes up to ElementShield Vinyl.

Features

  • Two & three panel configurations OX,XO,XOX
  • Equal lites or 1/4-1/2-1/4 configurations
  • 1/2″ flange frame
  • 3 1/4″ frame depth
  • Snap-on glazing beads
  • Strong structural glazing
  • Concealed installation fasteners
  • Aluminum reinforced sash
  • Extruded screen frame with Super-View fiberglass mesh
  • Capture-lock sash system
Schedule a Free In-Home Consultation

Finishes

White

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

  • Sweep Locks (over +60/-60 PSF)
  • Snap Lock

Commodity Sizes XO or OX (In Inches)
Width Height Width Height Width Height
26 1/2 26 37 26 53 1/8 26
26 1/2 38 3/8 37 38 3/8 53 1/8 38 3/8
26 1/2 50 5/8 37 50 5/8 53 1/8 50 5/8E
26 1/2 63 37 63 53 1/8 63E









Modular Sizes XO or OX (In Inches)
WxH WxH WxH WxH WxH WxH WxH
36 x 26 48 x 26 54 x 26 60 x 26 66 x 26 72 x 26 74 x 26
36 x 38 3/8 48 x 38 3/8 54 x 38 3/8 60 x 38 3/8 66 x 38 3/8E 72 x 38 3/8E 74 x 38 3/8E
36 x 50 5/8 48 x 50 5/8 54 x 50 5/8E 60 x 50 5/8E 66 x 50 5/8E 72 x 50 5/8E 74 x 50 5/8E
36 x 54 48 x 54 54 x 54E 60 x 54E 66 x 54E 72 x 54E 74 x 54E
36 x 63 48 x 63 54 x 63E 60 x 63E  66 x 63E 72 x 63E 74 x 63E

*Sizes shown are for flange frame. Subtract 1” or equal leg frame.
E= Meets clear opening egress requirements at 5.7 sq. ft.

Commodity Sizes XOX (In Inches)
Width Height Width Height Width Height Width Height
53 /18 26 74 26 106 3/8 26 111 26
53 1/8 38 3/8 74 38 3/8 106 3/8 38 3/8E 111 38 3/8E
53 1/8 50 5/8 74 50 5/8E 106 3/8 50 5/8E 111 50 5/8E
53 1/8 63 74 63E 106 3/8 63E 111 63E









Modular Sizes XOX (In Inches)
WxH WxH WxH WxH WxH WxH WxH
48 x 26 60 x 26 72 x 26 74 x 26 84 x 26 96 x 26 108 x 26
48 x 38 3/8 60 x 38 3/8 72 x 38 3/8 74 x 38 3/8 84 x 38 3/8 96 x 38 3/8E 108 x 38 3/8E
48 x 50 5/8 60 x 50 5/8 72 x 50 5/8 74 x 50 5/8 84 x 50 5/8E 96 x 50 5/8E 108 x 50 5/8E
48 x 54 60 x 54 72 x 54 74 x 54 84 x 54E 96 x 54E 108 x 54E
48 x 63 60 x 63 72 x 63 74 x 63 84 x 63E  96 x 63E 108 x 63E

*Sizes shown are for flange frame. Subtract 1” or equal leg frame.

E= Meets clear opening egress requirements at 5.7 sq. ft.



Performance Results
Maximum Water Resistance 9 PSF
Small and Large Missile 2 panel 74 3/4″” x 63″ Ann/Ann

2 panel 74 3/4″” x 63″ HS/HS

 +60 PSF/ -60 PSF

+70 PSF/ -75 PSF
3 panel 111″ x 63″ Ann/Ann

3 panel 111″ x 63″ HS/HS

 +60 PSF/ -60 PSF

+70 PSF/ -75 PSF
Forced Entry Test (ASTM F588) Passed
1/4-1/2-1/4 option at 111″ x 63″ +60/-60 PSF with both sweep and snap locksBased on flange frame size.

Energy Values
U Factor SHGC VT
7/16″ Clear LoE 366 Laminated 0.81 0.27 0.45
7/16″ Gray Laminated 0.81 0.43 0.37
7/16″ Clear Laminated 0.81 0.55 0.65
1″ Insulated Laminated Clear LoE 366 0.28 0.21 0.47
1″ Insulated Laminated Clear LoE 270 0.28 0.27 0.51

  • Flange, fin & equal leg frame options
  • Double applied contoured exterior muntins and internal grills between glass
