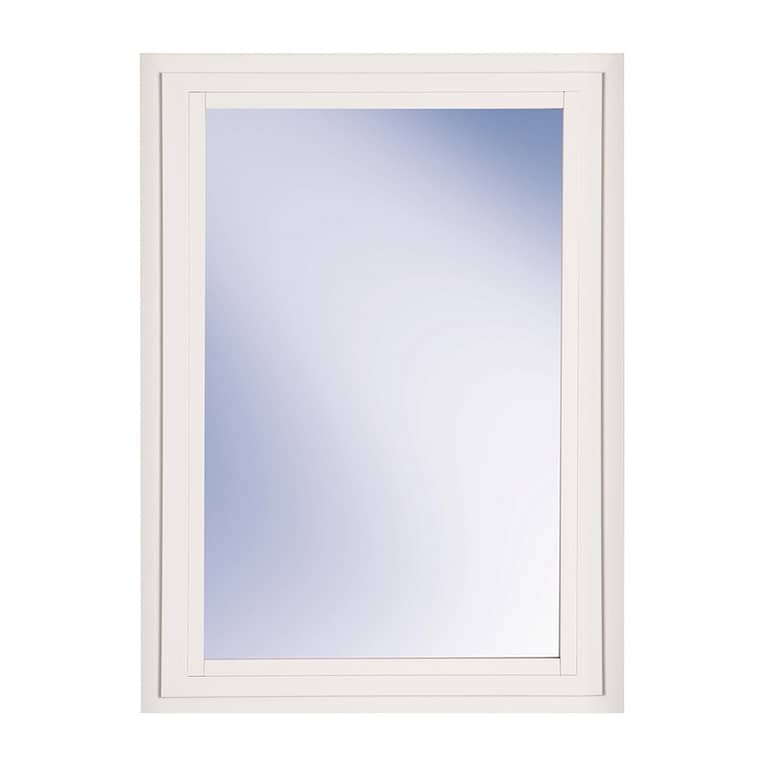

Project-Out/Awning Window Series 238

Project-Out/Awning Window Series 238

Our ElementShield Aluminium Collection project-out window not only looks great but outperforms its competitors in quality and value. CGI’s impact resistant 238 series of casements and project-out / awning windows have matching sightlines which allow them to be used interchangeably giving you a consistent look throughout your home.

Features

  • Extruded screen frame with Super-View mesh
  • Extruded snap-on square glazing beads
  • Stainless steel assembly screws and corner keys
  • Double weatherstripping
  • 1/2” Exterior flange frame
  • 2” Deep frame

Finishes

White
Clear Anodized
Bronze

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

  • Dual Stainless Steel arm roto operator and crank handle
  • Stainless steel operator track
  • Pair of stainless steel four bar concealed hinges
  • Pair of locks
  • Pair of stainless steel keepers for above locks
  • Snubber blocks
  • Small arm operator on units less than 32″, Large arm operator on units 32″ or more

Commodity Sizes
Width Height Width Height Width Height
19 1/8 17 26 1/2 17 37 17
19 1/8 26 26 1/2 26 37 26
19 1/8 38 3/8 26 1/2 38 3/8 37 38 3/8
19 1/8 50 5/8 26 1/2 50 5/8 37 50 5/8
19 1/8 63 26 1/2 63 37 63
19 1/8 72 26 1/2 72 37



Custom Sizes
Width Height
Minimum Available 18″ Minimum Available 17″
Maximum Available 84″ Maximum Available 84″
Maximum over-all window area is 16.34 sq. ft



Modular Sizes
WxH WxH WxH WxH WxH WxH WxH WxH WxH WxH WxH WxH WxH
20 x 24 24 x 24 28 x 24 30 x 24 32 x 24 36 x 24 40 x 24 42 x 24 48 x 24 54 x 24 60 x 24 66 x 24 72 x 24
20 x 30 24 x 30 28 x 30 30 x 30 32 x 30 36 x 30 40 x 30 42 x 30 48 x 30 54 x 30 60 x 30 66 x 30 72 x 30
20 x 36 24 x 36 28 x 36 30 x 36 32 x 36 36 x 36 40 x 36 42 x 36 48 x 36 54 x 36 60 x 36
20 x 42 24 x 42 28 x 42 30 x 42 32 x 42 36 x 42 40 x 42 42 x 42 48 x 42 54 x 42
20 x 48 24 x 48 28 x 48 30 x 48 32 x 48 36 x 48 40 x 48 42 x 48 48 x 48
20 x 54 24 x 54 28 x 54 30 x 54 32 x 54 36 x 54 40 x 54 42 x 54
20 x 60 24 x 60 28 x 60 30 x 60 32 x 60 36 x 60
20 x 66 24 x 66 28 x 66 30 x 66 32 x 66
20 x 72 24 x 72 28 x 72 30 x 72 32 x 72
20 x 84 24 x 84
All window dimensions shown are tip to tip of exterior 1/2″ flange in frame
Do not use Project Out windows where Egress (Emergency Escape) is required
Use of small arm operator will limit window opening (ventilation) to 2 ¾”. Use of large arm operator will limit window opening (ventilation) to 8”

Performance Results
Maximum Water Resistance 16.5 PSF
Large Missile 24 x 36 window (Ann/ Ann) + 110 PSF/ – 161.9 PSF
37 x 63 (Ann/ Ann) +60 PSF/ -60 PSF
Forced Entry Test (AAMA 1302.5) Passed

ENERGY VALUES (NFRC APPROVED)
Laminated U Factor SHGC VT
5/16″ Gray 1.07 0.44 0.39
5/16″ Clear 1.07 0.53 0.59
Insulated Laminated
3/4″ Clear LoE 366 0.63 0.21 0.42
3/4″ Clear LoE 270 0.63 0.27 0.46

  • Limit opening device
  • Custodial type locks (for institutional use)
  • Equal leg frame
  • Collapsible crank handle
