Project-Out/Awning Window Series 7400

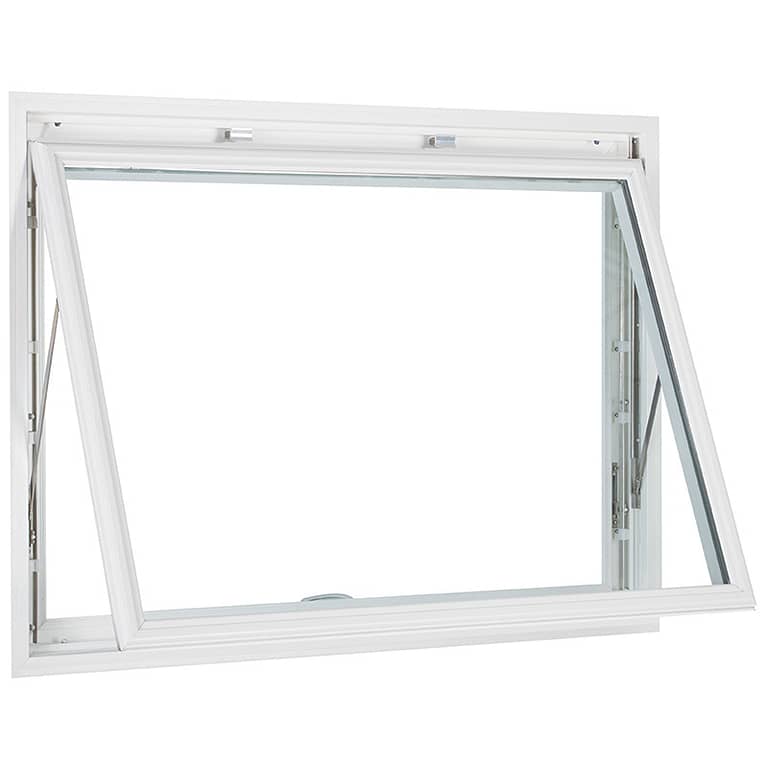

The ElementShield Vinyl Series 7400 Project Out Window designed by CGI features a single action multi point lock, nesting handle, and stainless ElementShield Vinyl steel package including operators and hinges. Our contoured trim adds a touch of elegance to any room.

Features

Snap-on glazing beads
Triple weatherstripping
1/2″ flange frame
3 1/4″ frame depth
Strong structural glazing
Aluminum reinforced frames and sash
Extruded screen frame with Super-View fiberglass mesh

Finishes

White

Glass

Solexia

Rain

Obscure

Mist

Grey

Dark Grey

Clear

Bronze

Hardware

Stainless steel arm operator with nesting crank handle
Stainless steel operator track
Pair of stainless steel concealed hinges
Multipoint lock system with single locking handle
Stainless steel keepers
Aluminum super-snubber blocks
Small operator on units less than 22″, large operator on units 22″ or more

Sizes

Commodity Sizes (In Inches)
Width	Height	Width	Height	Width	Height	Width	Height
19 1/8	17	26 1/2	17	37	17	53 1/8	17
19 1/8	26	26 1/2	26	37	26	53 1/8	26
19 1/8	38 3/8	26 1/2	38 3/8	37	38 3/8	53 1/8	38 3/8
19 1/8	50 5/8	26 1/2	50 5/8	37	50 5/8

Modular Sizes (In Inches)
WxH	WxH	WxH	WxH	WxH	WxH	WxH	WxH	WxH
20 x 24	24 x 24	28 x 24	30 x 24	32 x 24	36 x 24	40 x 24	42 x 24	48 x 24
20 x 30	24 x 30	28 x 30	30 x 30	32 x 30	36 x 30	40 x 30	42 x 30	48 x 30
20 x 36	24 x 36	28 x 36	30 x 36	32 x 36	36 x 36	40 x 36	42 x 36	48 x 36
20 x 42	24 x 42	28 x 42	30 x 42	32 x 42	36 x 42	40 x 42	42 x 42	48 x 42
20 x 48	24 x 48	28 x 48	30 x 48	32 x 48	36 x 48

*Sizes shown are for flange frame. Subtract 1” for equal leg frame.

NOA/Performance

Performance Results
Maximum Water Resistance		9 PSF
Small and Large Missile	53 1/8″ x 39″ Ann/Ann 53 1/8″ x 39″ HS/HS	+60 PSF/ -60 PSF +75 PSF/ -75 PSF
Forced Entry Test (ASTM F588)		Passed
Based on flange frame size.

Energy Values

Energy Values
	U Factor	SHGC	VT
7/16″ Clear LoE Laminated	0.78	0.25	0.41
7/16″ Gray Laminated	0.77	0.39	0.34
7/16″ Clear Laminated	0.77	0.51	0.60
1″ Insulated Laminated Clear LoE 366	0.29	0.19	0.43
1″ Insulated Laminated Clear LoE 270	0.30	0.25	0.46

Optional Items

Flange, Fin and Equal leg frame options
Double applied contoured exterior muntins and internal grills between glass
