Single Hung Window Series 110

Single Hung Window Series 110

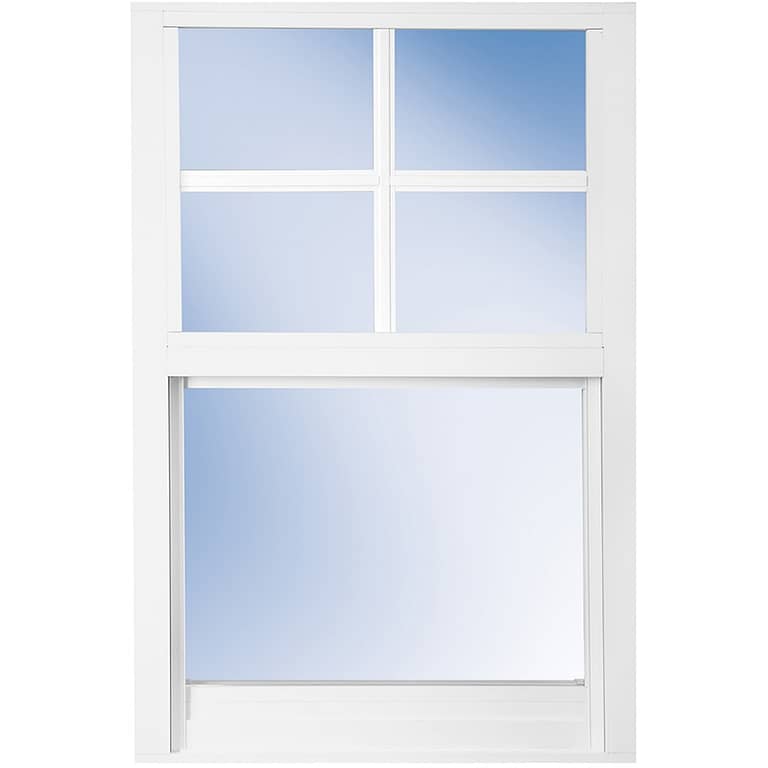

The ElementShield Aluminium Series 110 single-hung impact window is a value priced offering from CGI designed with many of the features you have come to expect from CGI. The single-hung window is constructed with commercial-grade aluminum frames, architecturally correct and even sightlines, a water and air resistant captured bottom rail, stainless steel fasteners and multiple points of weatherstripping while maintaining the stylish look of a traditional single-hung window.

Features

  • Matching top and bottom sight lines
  • Flush design
  • U-framed captured bottom rail with triple weatherstripping and weeped sill
  • 2 1/2” deep frame
  • Hidden block and tackle balances (most sizes)
  • Extruded snap-on glazing beads
  • Strong structural glazing
  • Concealed head anchors
  • 3 #10 1 1/4” stainless steel fasteners per corner
  • Extruded screen frame with
  • Super View™ fiberglass mesh

Finishes

White
Clear Anodized
Bronze

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

Egress self closing lock (sill mounted)

Sizes
Commodity Sizes
Width Height Width Height Width Height Width Height
19 1/8 26 26 1/2 26 37 26 53 1/8 26
19 1/8 38 3/8 26 1/2 38 3/8 37 38 3/8 53 1/8 38 3/8
19 1/8 50 5/8 26 1/2 50 5/8 37 50 5/8 53 1/8 50 5/8
19 1/8 59 1/2 26 1/2 59 1/2 37 59 1/2 53 1/8 59 1/2 e
19 1/8 63 26 1/2 63 37 63 e 53 1/8 63 e
19 1/8 76 26 1/2 76 37 76 e 53 1/8 76 e
e= Meets clear opening egress requirements at 5.7 sq. ft.
All single hung windows have a 2 1/2″ depth, ideal for replacement applications

Modular Sizes
Width Height Width Height Width Height Width Height Width Height
24 26 32 26 40 26 44 26 48 26
24 38 3/8 32 38 3/8 40 38 3/8 44 38 3/8 48 38 3/8
24 50 5/8 32 50 5/8 40 50 5/8 44 50 5/8 48 50 5/8
24 59 1/2 32 59 1/2 40 59 1/2 e 44 59 1/2 e 48 59 1/2 e
24 63 32 63 40 63 e 44 63 e 48 63 e
24 76 32 76 40 76 e 44 76 e 48 76 e
All single hung windows have a 2 1/2″ depth, ideal for replacement applications
NOA/Performance

Small missile performance results available upon request.

Performance Results
Maximum Water Resistance 12 PSF
Large Missile 53 1/8″ x 76″ window (Ann/Ann) + 75 PSF/ – 75 PSF
53 1/8″ x 76″ window (HS/HS) +80 PSF/ -85 PSF
Forced Entry Test (AAMA 1302.5) Passed
Energy Values
ENERGY VALUES (NFRC APPROVED)
Laminated U Factor SHGC VT
5/16″ Clear LoE 366 1.05 0.29 0.46
5/16″ Gray 1.04 0.49 0.44
5/16″ Clear 1.04 0.59 0.66
Insulated Laminated
3/4″ Clear LoE 366 0.60 0.23 0.47
3/4″ Clear LoE 270 0.60 0.30 0.51
Optional Items
  • Meeting rail mounted sweep locks
  • Uneven size vent windows (Oriel)
  • Flange, fin & equal leg frame options
  • Additional egress self closing lock
