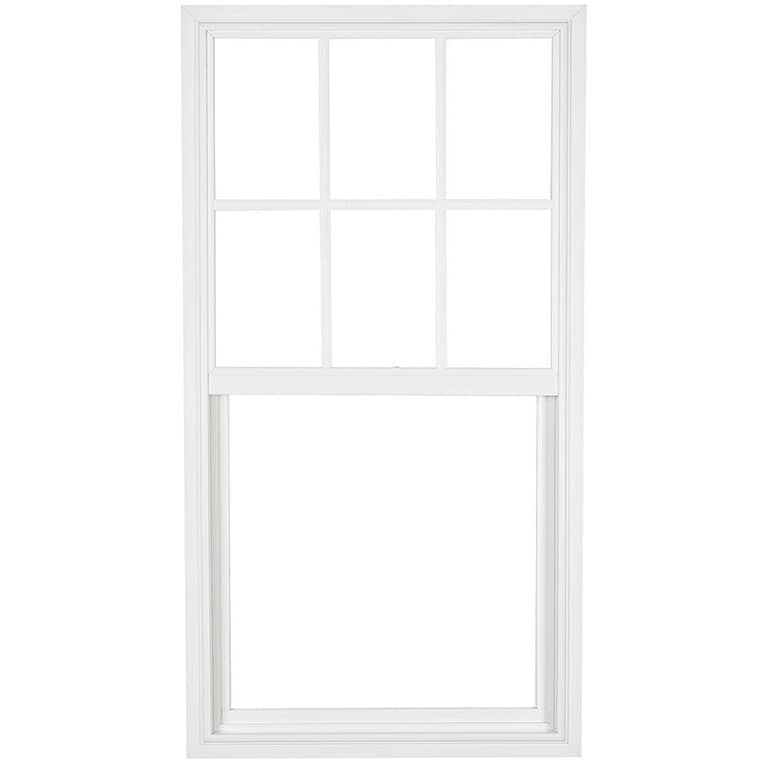

Single Hung Windows Series 7100

Single Hung Windows Series 7100

The ElementShield Vinyl Series 7100 Single Hung impact window designed by CGI includes a Lift Assist Constant Force Balance System, concealed balances, capture-lock sash system, and recessed tilt latches for unobstructed views.

Features

  • 3 1/4″ frame depth
  • 1/2″ flange frame
  • Aluminum reinforced jamb
  • Sloped sill
  • Capture-lock sash system
  • Lift Assist Constant Force Balance System
  • Snap-on glazing beads
  • Strong structural glazing
  • No installation fasteners required in head or sill
  • Aluminum reinforced sash
  • Extruded screen frame with Super-View fiberglass mesh
Schedule a Free In-Home Consultation

Finishes

White

Glass

Solexia
Rain
Obscure
Mist
Grey
Dark Grey
Clear
Bronze

Hardware

  • Recessed Tilt Latches
  • Sweep locks
Sizes

Commodity Sizes (In Inches)
Width Height Width Height Width Height Width Height
19 1/8 26 26 1/2 26 37 26 53 1/8 26
19 1/8 38 3/8 26 1/2 38 3/8 37 38 3/8 53 1/8 38 3/8
19 1/8 50 5/8 26 1/2 50 5/8 37 50 5/8 53 1/8 50 5/8
19 1/8 63 26 1/2 63 37 63 53 1/8 63E
19 1/8 76 26 1/2 76 37 76E 53 1/8 76E







Modular Sizes  (In Inches)
Width Height Width Height Width
24 x 26 32 x 26 40 x 26 44 x 26 48 x 26
24 x 38 3/8 32 x 38 3/8 40 x 38 3/8 44 x 38 3/8 48 x 38 3/8
24 x 50 5/8 32 x 50 5/8 40 x 50 5/8 44 x 50 5/8 48 x 50 5/8
24 x 63 32 x 63 40 x 63E 44 x 63E 48 x 63E
24 x 76 32 x 76 40 x 76E 44 x 76E 48 x 76E

*Sizes shown are for flange frame. Subtract 1” or equal leg frame.
E= Meets clear opening egress requirements at 5.7 sq. ft.

NOA/Performance

Performance Results
Maximum Water Resistance 9 PSF
Small and Large Missile 54″ x 77″ Ann/Ann

54″ x 77″  HS/HS

 +60 PSF/ -60 PSF

+70 PSF/ -75 PSF
Forced Entry Test (ASTM F588) Passed
Based on flange frame size.

Energy Values

Energy Values
U Factor SHGC VT
7/16″ Clear LoE 366 Laminated 0.81 0.27 0.46
7/16″ Gray Laminated 0.81 0.44 0.38
7/16″ Clear Laminated 0.81 0.56 0.67
1″ Insulated Laminated Clear LoE 366 0.28 0.21 0.48
1″ Insulated Laminated Clear LoE 270 0.29 0.28 0.52

Optional Items

  • Available in Oriel/ Proview configurations
  • Flange, Fin, and Equal leg frame options
  • Double applied contoured exterior muntins and internal grills between glass
