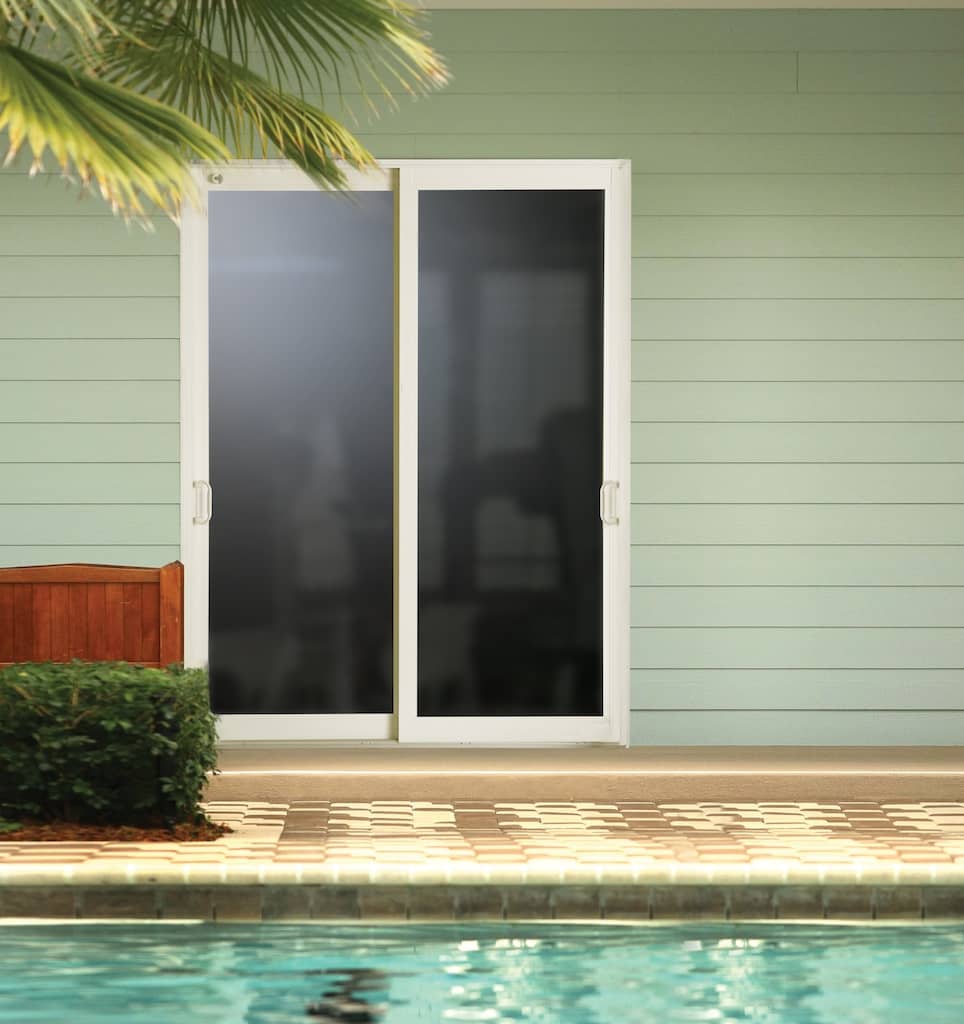

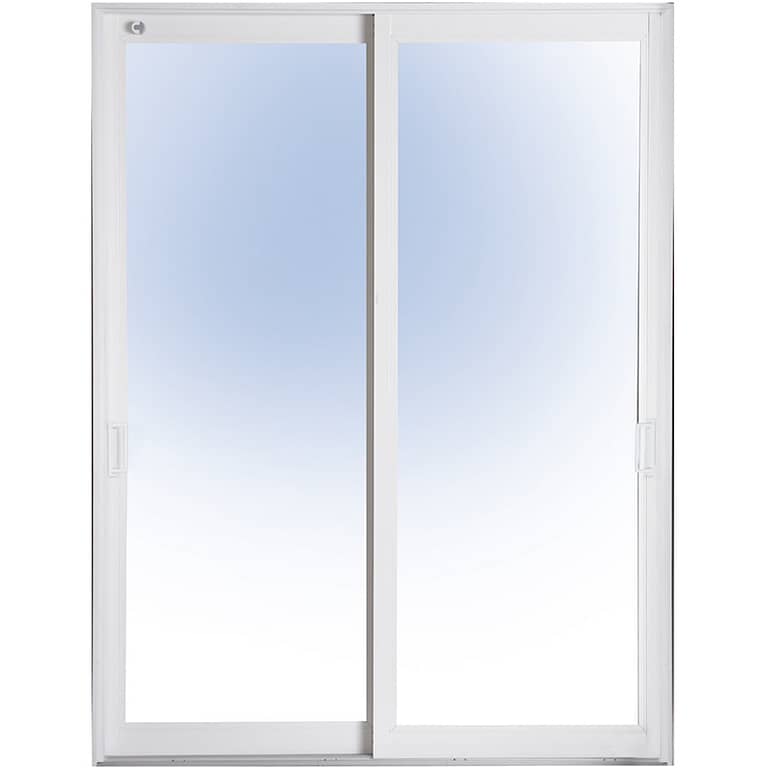

Sliding Glass Doors Series 150

The ElementShield Aluminum Sliding Glass Door is a value priced offering built with many standard features that CGI customers have come to expect. The ElementShield Vinyl Sliding Glass Door is available in many sizes and configurations including two track (up to 4 panels), three track (up to 6 panel), and 4 track (up to 8 panel) configurations with our without pocketed doors and is available with individual door panels as large as 4 1/8 x 10.
The ElementShield Vinyl Sliding Glass Door includes top of the line standard features not always offered in other competitive products such as concealed installation fasteners, tandem stainless steel rollers, mitered corner detailing, stainless steel fasteners, class I anodized sill track and a screen that is built as tough as many door panels.

Features

2,3, and 4 track and pocketed configurations
4 3/4” deep frame on 2 track
6” deep frame on 3 track
7 3/4″ deep frame on 4 track
Mitered decorative interior corners
Stainless steel fasteners
Heavy duty extruded screen frame with Super View™ fiberglass mesh
2- point lock
Concealed installation screws

Finishes

White

Glass

Solexia

Rain

Obscure

Mist

Grey

Dark Grey

Clear

Bronze

Hardware

Interior lock and handle
Stainless steel rollers
White, Gray, or Bronze handles

Sizes

ElementShield Aluminium 6′ 8″ , 8’0, and 10′ Sliding Glass Door Sizes (80″ , 96″, 120″ frame height)
	Configuration	Call Width	Frame Width
2 track	OX, XO, XX-R, XX	4-0	48
		5-0	60
		6-0	72
		8-0	96
	OXO, OXO-R	9-0	108 3/8
	OXO, OXO-R	12-0	144 3/8
	OXXO, XXXX	10-0	118 7/16
		12-0	142 7/16
		16-0	190 7/16
	Configuration	Call Width	Frame Width
3 track	XXX, XXO, XXX-R, OXX	7-6	88 1/16
		9-0	106 1/16
		12-0	142 1/16



	OXXXXO, XXXXXX	15-0	174 5/8
		18-0	210 5/8
		24-0	282 5/8
	Configuration	Call Width	Frame Width
4 track	XXXO, OXXX, XXXX,XXXXR	10-0	116 1/16
		12-0	140 1/16
		16-0	188 1/16
		18-0	212 1/16

	OXXXXXXXO, XXXXXXXX	20-0	230 9/16
		24-0	278 9/16
		32-0	374 9/16
		36-0	422 9/16

*Pocket configurations available

NOA/Performance

Performance Results
Maximum Water Resistance	Without waterbar adapter	9 PSF
	With waterbar adapter	12 PSF
Large Missile	4′ x 8′ Panel (Ann/ HS)	+60 PSF/ -60 PSF
	4′ x 8′ Panel (HS/ HS)4′ x 10′ Panel (Ann/HS)	+80 PSF/ -80 PSF+60 PSF/ -60 PSF
Forced Entry Test (AAMA 1302.5)		Passed

Energy Values

Energy Values (NFRC Approved)
Laminated U Factor SHGC VT
7/16″ Clear LoE 366 1.02 0.29 0.44
7/16″ Gray 1.03 0.43 0.37
7/16″ Clear 1.03 0.56 0.65
Insulated Laminated
1″ Clear LoE 366 0.56 0.22 0.45
1″ Clear LoE 270 0.56 0.28 0.5

Optional Items

Exterior keyed security lock
Dual track extruded screen frame with Super View™ fiberglass mesh for use with 3 track configurations
